High-Shear Homogenizers & Dispersers - Swiss Precision Since 1962
Discover world-leading homogenizer and disperser technology engineered in Switzerland. For over 60 years, Kinematica has developed high-performance rotor-stator systems for laboratory, pilot plant, and industrial production. Trusted by R&D directors and production managers globally, our POLYTRON®, MEGATRON®, and MICROTON® series deliver unmatched reproducibility for pharmaceutical, cosmetic, food, and chemical applications.
What is a Homogenizer and How Does Rotor-Stator Technology Work?
A high-shear homogenizer is designed to break down particles in a liquid to create a uniform, stable mixture (emulsion, suspension, or dispersion). Kinematica achieves this through our proven rotor-stator principle:
- Suction Zone: The medium is drawn into the precision gap between the high-speed rotating rotor and the stationary stator.
- Shear Zone: Intense mechanical shear forces (up to 100,000 s⁻¹) and cavitation instantly reduce particles to micrometer or nanometer sizes.
- Discharge Zone: The homogenized product is expelled radially, ensuring thorough mixing without dead zones.
Homogenizer vs. Disperser:
Is There a Difference?
The terms are frequently used synonymously, but there are subtle nuances: A homogenizer aims to make a mixture completely uniform (particle size and distribution), while a disperser is specifically optimized for distributing solids in liquids (e.g., powder in paints). Kinematica POLYTRON® devices combine both functions in one system – by changing the dispersing tool (generator), both applications can be realized with the same drive.
Our Homogenizer Series: Scalable from Lab to Production
Whether you are developing a new formula in the lab or scaling to industrial throughput, Kinematica offers seamless scalability with identical process parameters. All devices are characterized by Swiss quality, digital precision, and modular expandability.
The Benchtop Class for Laboratory and Pilot Plant
The industry standard for R&D and QC. From the portable PT 1200 E (up to 400 ml) to the high-end PT 3100 D (up to 10,000 ml, 30,000 RPM, PC-controlled).
Inline Homogenizers for Industrial Production
The Megatron® Series was developed for continuous inline operation in industrial production. These devices are integrated directly into piping systems and process throughputs from 100 liters to over 10,000 liters per hour.
Special Applications
Ultra-fine homogenization for minimal sample volumes and specialized ultrasonic dispersion.
Batch dispersers
195 Products
Dispersing Systems
8 Products
Inline Dispersers
46 Products

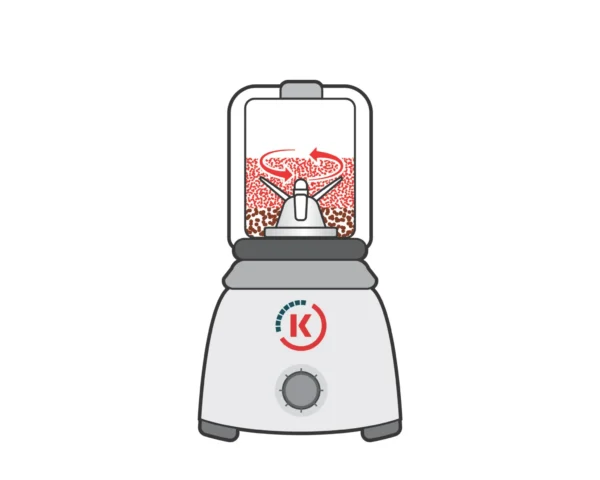

Mixing & Homogenizing
12 Products

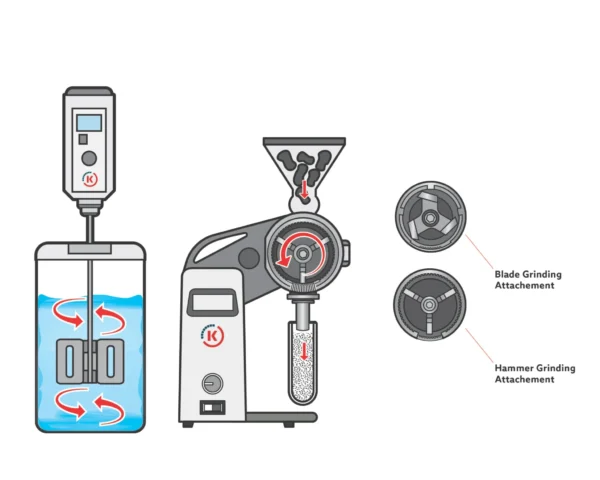

Mixing & Stirring
21 Products
Ultrasonic Homogenizer
33 Products
Why Rotor-Stator Technology? Advantages Over Other Methods
Compared to high-pressure homogenizers, ultrasonic systems, or ball mills, Kinematica’s rotor-stator technology offers decisive advantages:
- Precise particle size control: Through adjustable speed (500-30,000 RPM) and choice of generator, the target particle size can be precisely controlled – from a few micrometers to below 100 nanometers.
- Reproducible results:The digital PC software of our D-Series records every process parameter (speed, time, temperature, energy input) and enables exact repetition of every experiment – a basic requirement for GMP-compliant work.
- Seamless scalability: From laboratory (PT 1200 E, 100 ml) to production (Megatron MT, 10,000 L/h), the process parameters remain identical. This reduces development time from months to weeks.
- Low energy consumption: Compared to high-pressure homogenizers, Kinematica devices consume up to 40% less energy with comparable results.
- Easy cleaning: Tool-free disassembly of dispersing tools and CIP-capable (Cleaning-in-Place) designs minimize downtime.
Solutions by Industry:
Find Your Perfect Match
Pharmaceutical Industry & Biotechnology
In the pharmaceutical industry, homogenizers are essential for:
- Active ingredient suspensions:
Uniform distribution of API (Active Pharmaceutical Ingredients) in liquid dosage forms. - Vaccine development:
Emulsification of adjuvants and antigens for mRNA and protein vaccines.
- Liposomes & nanoparticles: Production of drug delivery systems with particle sizes below 200 nm.
- Cell lysis: Disruption of bacterial, yeast, and mammalian cells for protein extraction.
- DNA/RNA preparation: Homogenization of tissue samples for molecular biological analyses.
Cosmetics & Personal Care
The cosmetics industry trusts Kinematica for:
- Creams & lotions: Stable oil-in-water emulsions with creamy texture.
- Makeup products: Uniform dispersion of pigments in foundations and lipsticks.
- Sun protection: Homogeneous distribution of UV filters for consistent SPF.
- Vegan cosmetics: Emulsification of plant-based oils and waxes without animal ingredients.
Food Industry
In food production, our devices ensure:
- Ice cream: Fine ice crystals for creamy texture (less than 15 μm) – as demonstrated in our Vegan Ice Cream Case Study.
- Sauces & dressings: Stable emulsions without phase separation.
- Plant-based milk: Homogenization of oat, almond, and soy milk for mouthfeel texture.
- Baby food: Uniform nutrient distribution in infant nutrition.
Chemistry & Specialty Chemicals
The cosmetics industry trusts Kinematica for:
- Nanoparticle dispersions: For coatings, paints, and printing inks.
- Polymerization: Production of polymer dispersions and latex.
- Pigment milling: Fine dispersion of color pigments.
- Nanocomposites: Incorporation of nano-fillers into matrices.
How to Choose the Right Homogenizer?
4 Decision Factors
1. Sample Volume & Throughput
2. Sample Viscosity
Low-viscosity samples (water, solvents) require standard generators. High-viscosity samples (creams, pastes, doughs) require special generators with large openings and high shear force. Our Accessories Page shows all available tool options.
3. Target Particle Size
For micrometer ranges (5-50 μm), standard homogenizers are sufficient. For nanoparticles (<500 nm), we recommend high-speed models like the PT 3100 D with 30,000 RPM or ultrasonic systems like the BSP-1200.
4. Regulatory Requirements
For GMP-required applications (pharmaceuticals, cosmetics), choose devices with PC software and digital documentation (all D-models). For food production, look for EHEDG-certified inline systems.
Why Kinematica?
Reasons for Swiss Quality
- Swiss Made since 1962: Over six decades of specialized engineering in Locarno, Switzerland. Our commitment to precision and innovation has made us a trusted partner for laboratories and industries worldwide.
- Seamless Scale-Up: Develop your process in the lab with a POLYTRON® and scale directly to Megatron® production without re-validating parameters. This saves months of development time and ensures consistent product quality.
- Regulatory Compliance: Equipment designed for GMP, FDA 21 CFR Part 11, and EHEDG hygienic standards. Our digital D-Series models offer complete process documentation with audit trails for regulated industries.
- ISO 9001 & IQNet Certified Quality Management: Kinematica operates under a certified Quality Management System according to ISO 9001:2015 and is a member of the IQNet Association, the world's largest international certification network. This ensures that every device leaving our facility meets the highest international standards for quality, reliability, and continuous improvement. Our certification covers design, manufacturing, and after-sales service of homogenization and dispersion equipment.
- 2-year warranty & Swiss service: 24h spare parts availability in Switzerland, and dedicated application engineering support.
- Modular system: One drive unit, dozens of interchangeable generators. By simply changing the rotor-stator tool, you can adapt the same device to multiple applications, reducing equipment costs and training time.
Ready for the Next Step?
Schedule a free consultation with our application engineers or request an individual quote.
We help you find the perfect homogenizer for your application.
