Polytron PT 45-80 GT
Powerful stand-disperser (Ecoline)
Powerful stand-disperser (Ecoline), flexible-use disperser with EU-power cable (230 V)
With this powerful drive unit, with continuous speed control, high tip speeds and a lot of different and exchangeable POLYTRON® dispersing aggregates, the low-cost system PT 45-80 GT offer you a solution for a wide range of dispersing and mixing applications.
Drive Unit EU type E+F (CEE7/7) power cable
All prices are quoted on an EXW (Switzerland) basis and do not include packing, applicable taxes, or transport services.
* Items in stock, subject to prior sale. Order confirmation with definitive delivery date after receipt of order.
Description
Powerful stand-disperser (Ecoline), flexible-use disperser with EU-power cable (230 V) With this powerful drive unit, with continuous speed control, high tip speeds and a lot of different and exchangeable POLYTRON® dispersing aggregates, the low-cost system PT 45-80 GT offer you a solution for a wide range of dispersing and mixing applications. Drive Unit EU type E+F (CEE7/7) power cable.

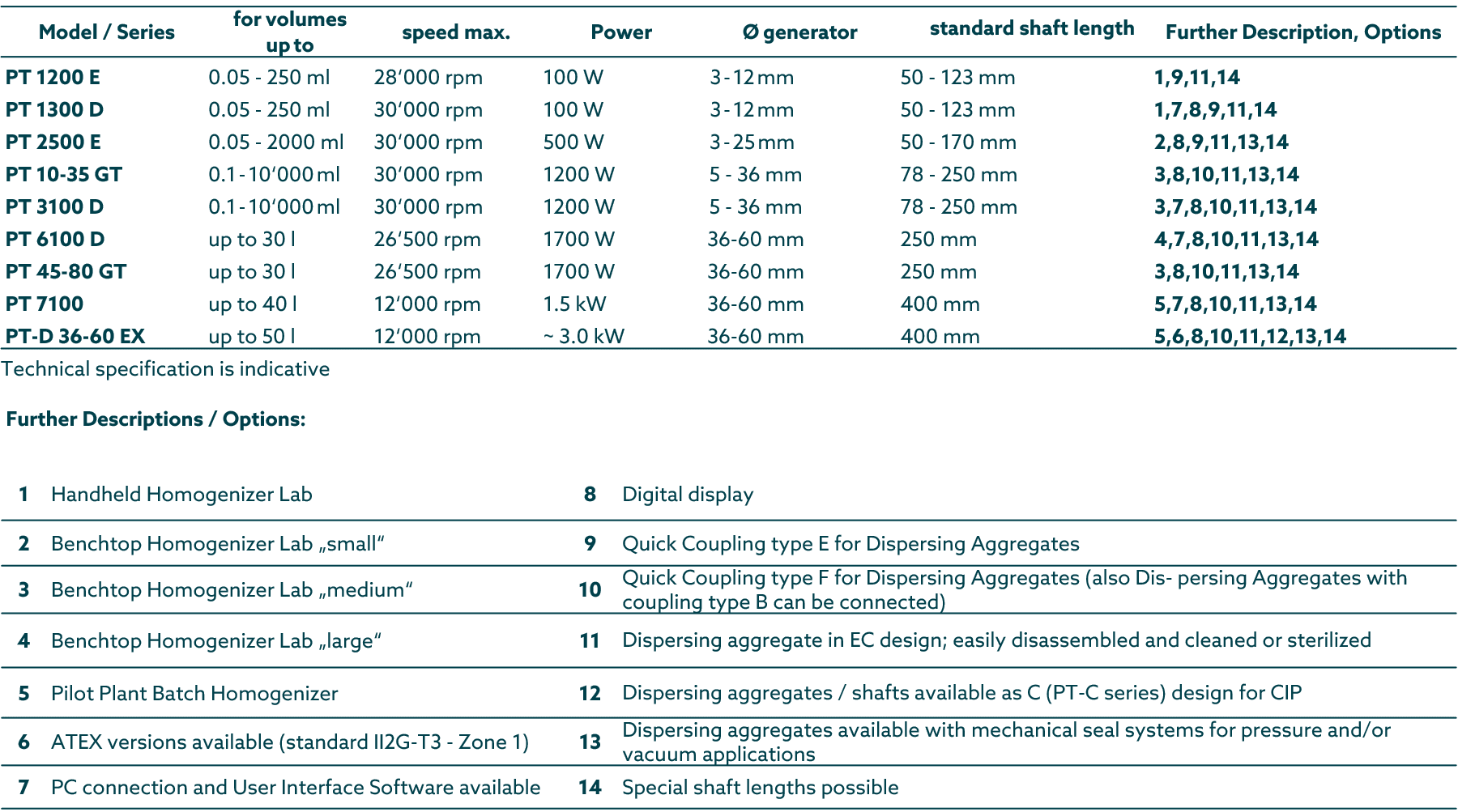

Comparison of different drive units:
Benefits
Ergonomics
– Easy operation with an on-off switch and speed control
– Intelligent variable speed control for long equipment life
– Speed stability even with changes in viscosity
– Protection against overheating, overload and blocking
– Easy to adjust motor height (depending on the stand)
– Switch aggregate quickly with Click & Go coupling
– Easy aggregate clean-up with EasyClean Design
Results are convincing
– Smallest sizes of particles / droplets: because precise analysis require homogeneous samples
– Efficient sample preparation: because fast dispersion saves time
– Standard or custom-made aggregates: perfected for and in cooperation with the users
– Cleaning and disassembly: EasyClean Design makes it very simple
– Quick coupling of the aggregates: by using Click & Go
– Best materials available: because without them, we could not call it Swiss Made
– Durability is a Swiss virtue
Technical Information
|
Min. Volume (ml) |
0.1 |
|
Max. Volume (ml) |
30000 |
|
Power (W) |
1700 |
|
Tip speed |
Up to max. 32 m/s |
|
Applicable aggregates |
ø 5 mm to ø 65 mm |
|
Speed range |
500 – 21 000 rpm |
|
Drive coupling |
Aggregates with F coupling |
|
Noise level (drive without aggregate) |
85 dB(A) at 21 000 rpm |
|
Motor |
Universal with carbon brushes |
|
Connection voltage |
110 – 230 V ± 10 %, 50Hz / 60Hz |
|
Relative humidity (max.) |
80 % during storage / 80 % during operation |
|
Operating temperature |
0 – 40 °C |
|
Protection class acc. to DIN |
IP 20 |
|
Dimensions (LxWxH) |
Drive: 140 x 185 x 270 mm |
|
Weight |
Drive: 7 kg |
|
EMC standards |
IEC / EN 61000-6-2 / EN 61000-6-3 |
|
Safety standard |
IEC / EN 61010-2-51 |
Downloads
| Instruction Manual | English |  |
| Product brochure | English | |
| Bedienungsanleitung | German | |
| Produktbroschüre | German | |
| 产品手册 | Chinese | |
